ETON automatic stencil printer solder paste printing machine for PCB assembly line

Name: ETON automatic stencil printer solder paste printing machine for PCB assembly line
Brand: ETON
Price: 3100 USD

China ETON automatic stencil printer solder paste printing machine for PCB assembly line factory

Brand Name : ETON

Model Number : ET-5235

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : 3100USD

Payment Terms : T/T, Western Union

Supply Ability : 100 Units/ Per Month

Delivery Time : 15 days

Packaging Details : Wooden box

Condition : New

Name : Full-automatic Printer

Product name : ET-F5235

PCB Maximum Size : 520*350MM

Dimension : 1220(L)X1355(W)X1500(H)MM

Weight : 1000KG

Contact Now

ETON automatic stencil printer solder paste printing machine for PCB assembly line

What is automatic stencil printer

Modern solder paste printing machines are generally composed of plates, tin paste, embossing, and transmission boards.

Its working principle is: firstly, the circuit board to be printed is fixed on the printing positioning table, and then the solder paste or
the red glue is printed on the corresponding pad through the steel mesh by the left and right scrapers of the printing machine,
and the PCB which is uniformly printed is passed through. The transfer station is input to the placement machine for automatic

placement.

1. Directly connected scraper head

2. Precise transportation system

3. Automatic and effective steel mesh cleaning system

4. Neat and convenient electrical safety arrangement

5. Fully automatic screen frame setting

6. Humanized operation interface

7. Shortenthe length of the transport rail in the printing area, and at the same time in the loading and publishing positions

ETON automatic stencil printer solder paste printing machine for PCB assembly line

Details of automatic stencil printer

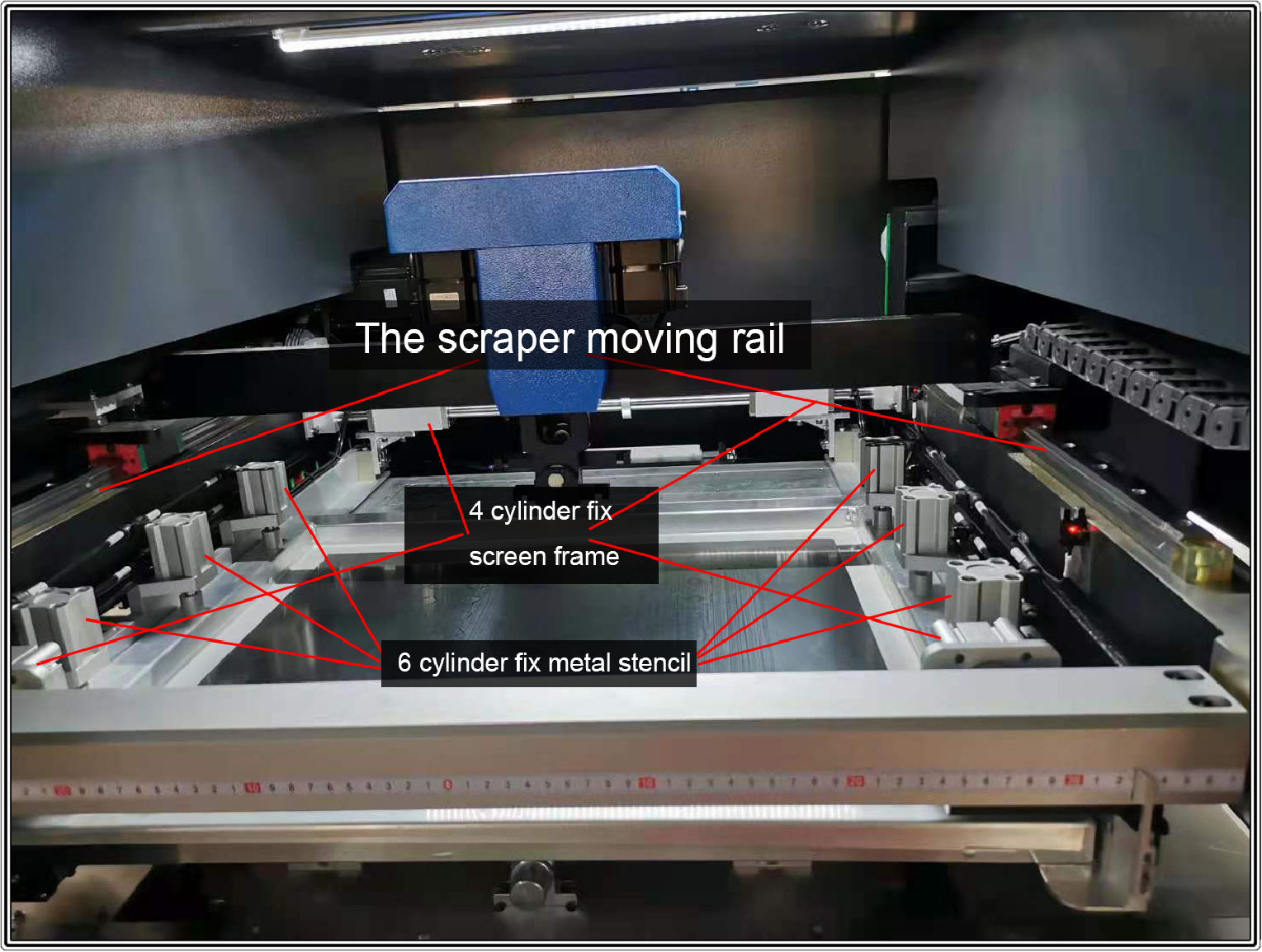

The use of multiple cylinders enables the screen frame and steel mesh of the printing press to be strongly fixed to ensure stability during work

Automatic fast clean system makes the stencil printer keep clean all the time to make sure the printing accuracy and save much time for printer production capacity.

Application of automatic stencil printer

Suitable for many factories, like electronic factory, home appliance factory, LED factories, etc

ET-5235 can do almost all kinds of PCB board printing. And it has high accuracy high speed, can save labor save cost, so it has been used to many different kinds of factories.

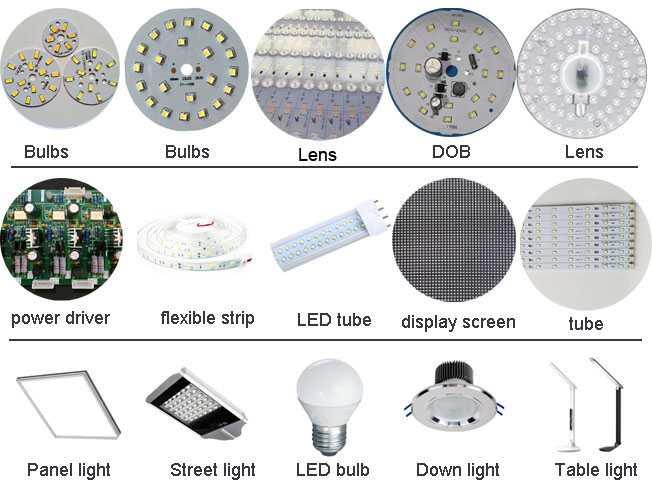

Suitable for different kinds of LED PCB

ET-5235 can do almost all kinds of PCB board printing. Such as different small LED products, like LED bulb, street light,
down light, panel light, display screen etc. It can also do power driver board, home appliance board etc.
